UULBIT LED Down light

ULL BIT®

LED down light with the SMPS (converter) integrated in it

New installations, 3-wave length LED bulb replacements

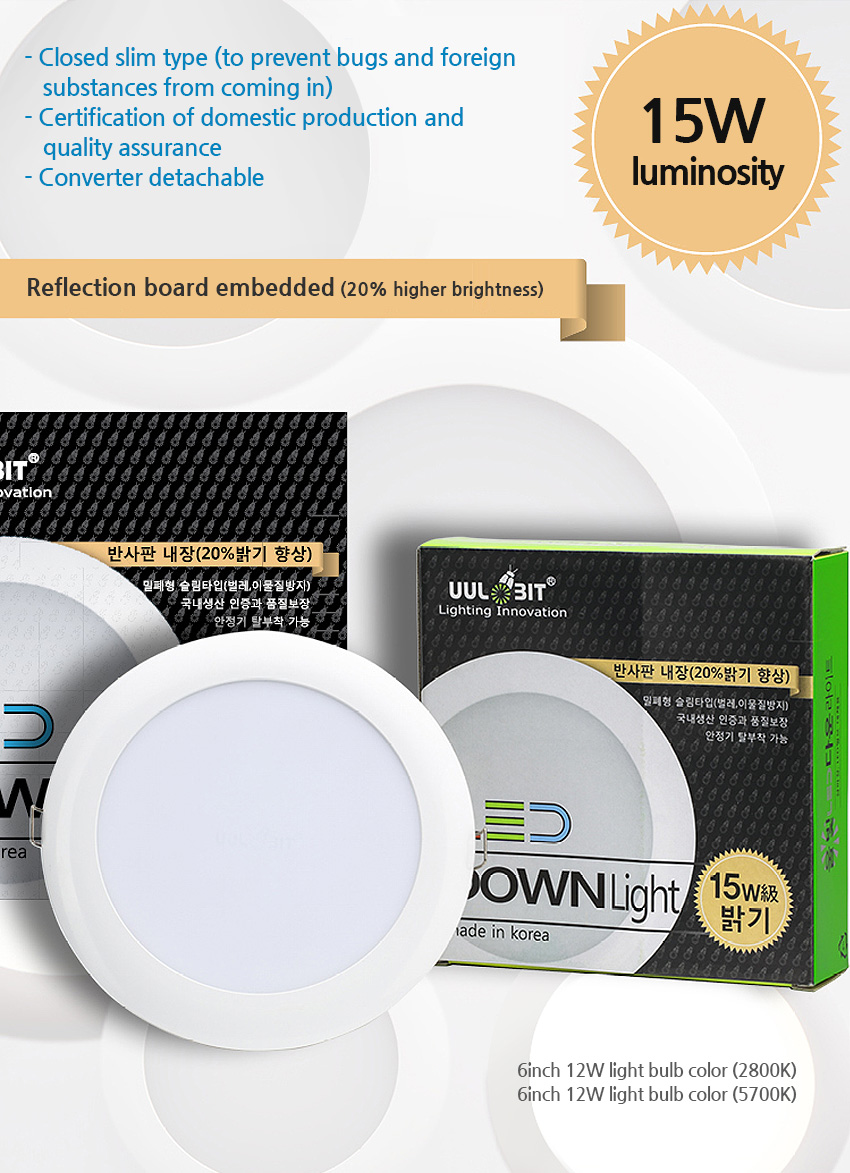

Reflection board embedded (20% higher brightness)

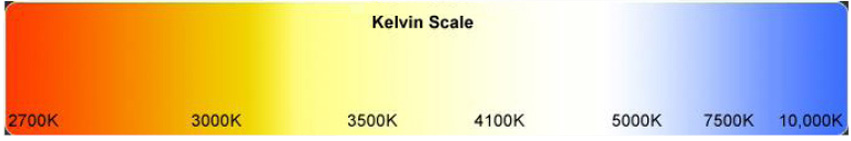

kelvin scale

※ Recommendations for each color temperature

  • 3,000K - 2700K (light bulb color): suitable for places that need a warm atmosphere
  • - Restaurants, bakery shops, kitchens, bathrooms, etc.
  • 5700 - 6,000K (daylight color): so bright that it is appropriate for places where lightings are used even during daytime.
  • - Mobile phone shops, jewelry shops, clothing shops, hair shops, offices, etc.
  • ▶ As the color temperature increases, it becomes brighter accordingly, but eye fatigue increases as well.

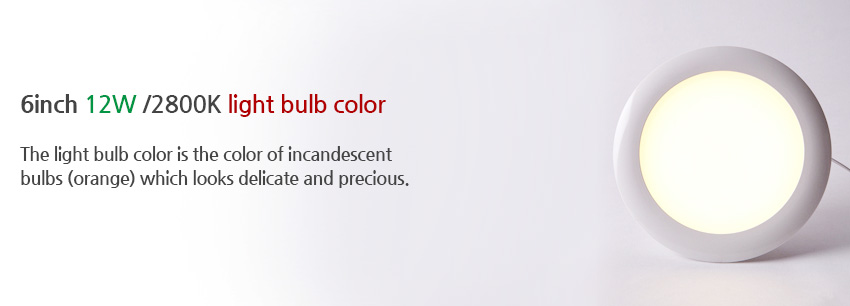

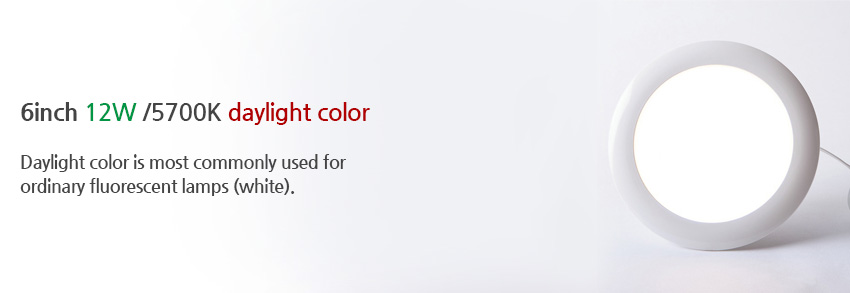

6inch 12W /5700K daylight color 6inch 12W /2800K light bulb color
LED Down Light(embedded)

The daylight color and light bulb color are the most commonly used.
There might be some difference in brightness and color tone.

Daylight color is the color of ordinary fluorescent lamps (white) that is the most commonly used.
The light bulb color is the color of incandescent bulbs (orange) which looks delicate and precious. The daylight color is a bit brighter than the light bulb color, and both colors are popular among most customers. Please carefully compare the color and brightness before buying one.

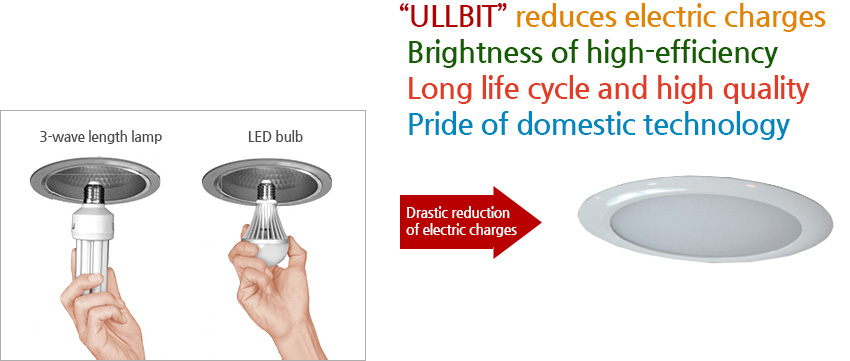

Replacing 3-wave length lamps with LED s

Drastic reduction of electric charges

"ULLBIT" LED down light for new constructions and interior designs
Reflection board application improves 20% higher brightness compared to the corresponding Watt unit / reduction of electric charges

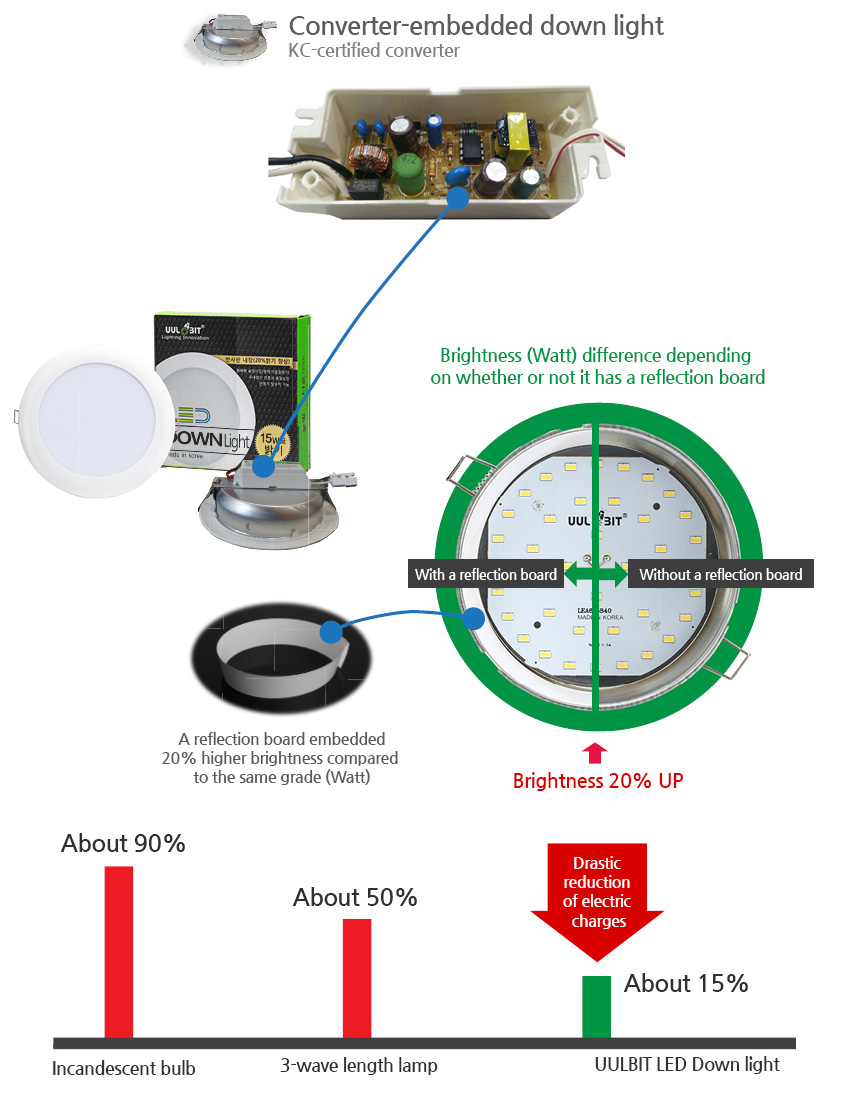

Converter-embedded down light

UULBIT LED Down light Features

SMPS (converter) embedded

Ceiling punching : ∮ 6 inch (150mm)

Ceiling punching : ∮ 6 inch (150mm)

ULLBIT LED down light products only improve the aesthetic appearance but also maintain the brightness as the lamp-covered radiation structure prevents bugs and foreign substances from coming in.

Features

- Complete sealing to prevent dust or bugs from coming in
- Certification of domestic production and quality assurance
- Converter detachable for convenience
- Life-span extension with the low-heat generation/heat rejection structure
- Interior designing effect
- flection board embedded (20% higher brightness)
- Long life cycle (40,000 hours), maintenance cost reduction
- 5700K colors protect eyesight.

Structure & Parts Titles

Product Name : LED Down light
Power Consumption : 12W
Model Name : LEA 661240 (daylight color)
Model Name : LEA 631240 (light bulb color)
Luminous flux : 1050 lm
Rated voltage : 220V / 60 Hz

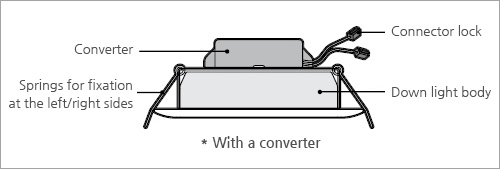

With a converter

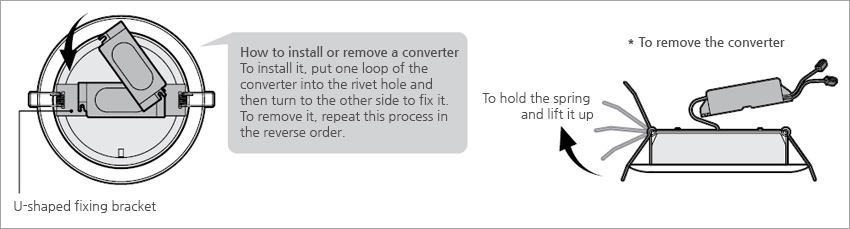

To remove the converter

How to install

  • Push the AC220V wire in the ceiling onto the connector lock to fix it.
  • And then hold the springs at the left/right sides and lift them up. Release the springs as soon as you put some part of the body into the ceiling, and fix the converter into the ceiling.

Precautions

  1. 1. This product is exclusive for AC220V. Be sure to check the voltage before installing the unit.
  2. 2. This product cannot be used as a lighting for emergency exit
  3. 3. A dimmer cannot be used with this product.
  4. 4. Avoid installing the unit with your hands wet.
  5. 5. If you find any problem while installing the unit, call the customer center of the company.

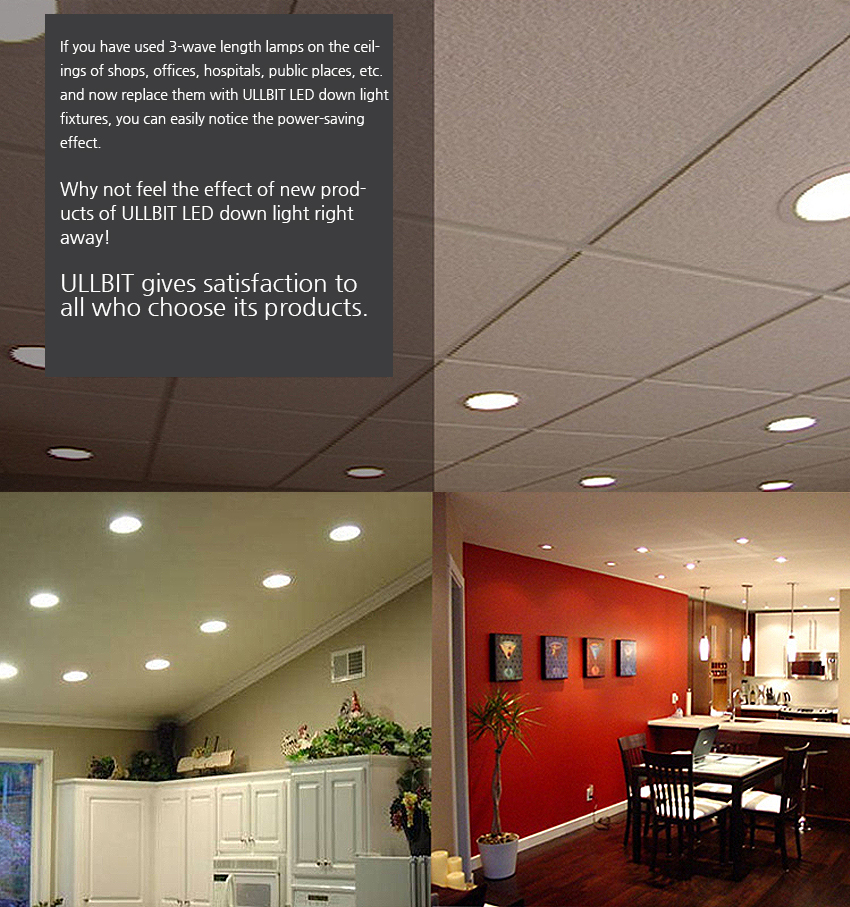

ULLBIT gives satisfaction to all who choose its products.
