ULLBIT LED SM16 Block Bar

Snow Fall

What Is UULBIT LED Block Bar?

LED Block Bar is a creative patented product whose indoor/outdoor interior and eye-catching effects have been recognized. It has gained good reputation from many customers.
As ULLBIT LED Block Bar is utilized in indoor/outdoor spaces of variability, advertisement effects can be improved significantly.

LED MY DESIGN LED MY DESIGN

You can create your own design by utilizing Sketchup files.
With original and creative LED designs, draw attention to your LEDs and increase sales!

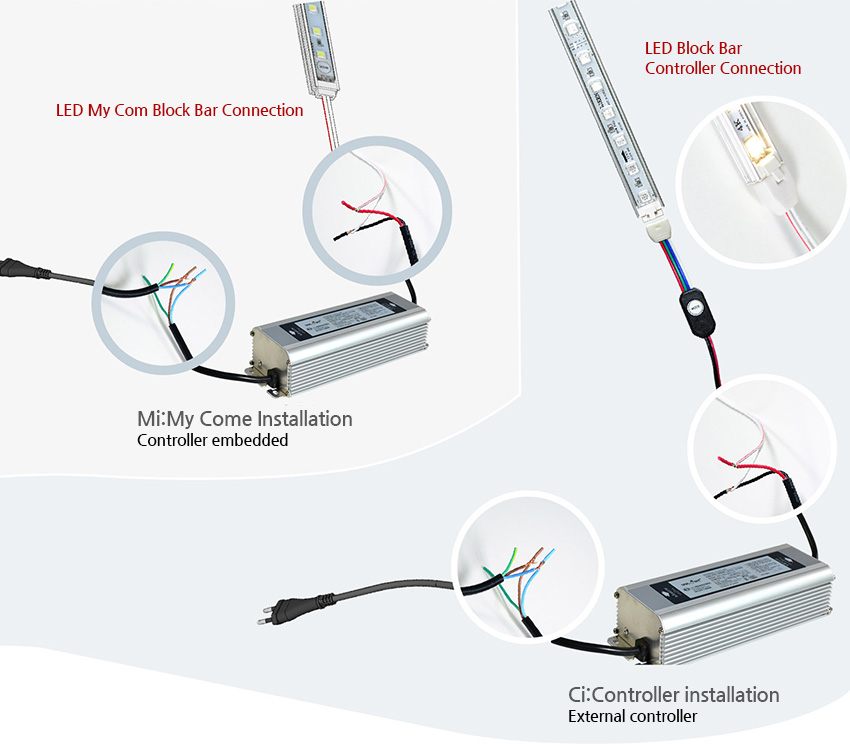

LED My Com Block Bar Connection, LED Block Bar Controller Connection
LED Block Bar Utilization

LED Block Bar Utilization

LED lightings with optimal effects for indirect lightings for offices, shops, signboards, and advertisements; ceiling Barrisol works for new or remodeled buildings; POP advertisements, showcases, indirect ads on shop displays; commodity value increasing of furniture and accessories, and various other household items. DIY lighting products in which you can reflect your own ideas to leisure activities and various items such as drone, bicycle, board, vehicle, and so forth.

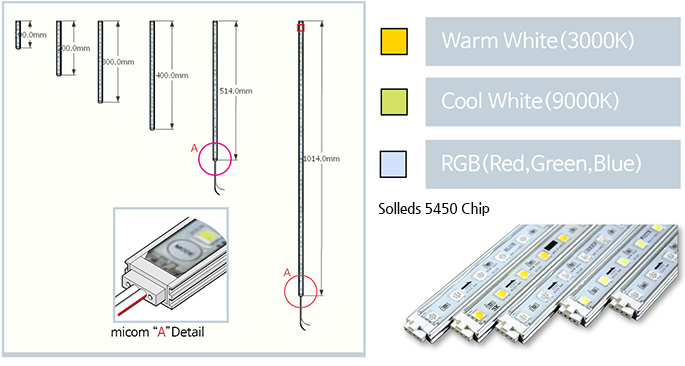

ULLBIT LED SM16 Block Bar | Block Bar Module

Block Bar Module

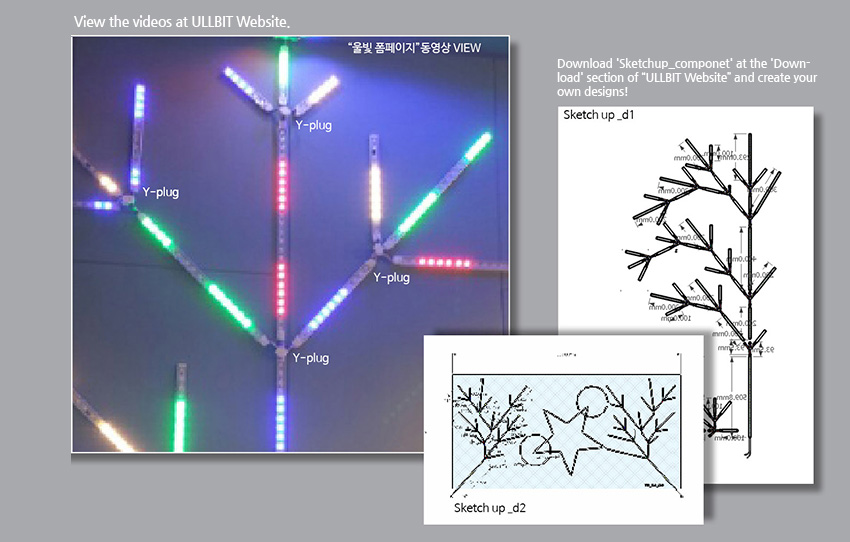

ULLBIT LED SM16 Block DIY Design

View the videos at ULLBIT Website

ULLBIT LED SM16 Block Bar & Plug

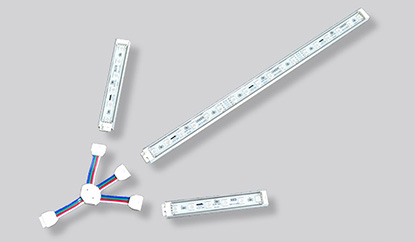

Y-Plug and LED block bar

Y-Plug and LED block bar

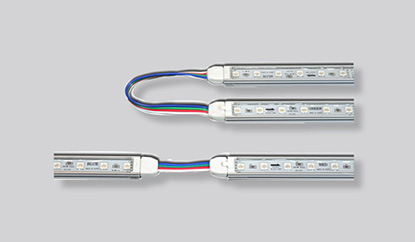

I-Plug and LED block bar

I-Plug and LED block bar

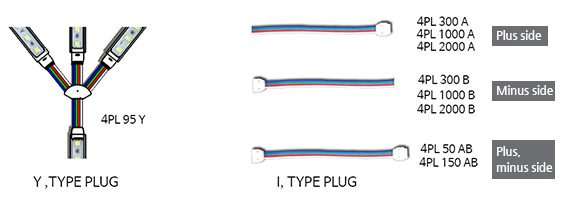

Connecting Plug UG Y&I, Type

Connecting Plug UG Y&I, Type

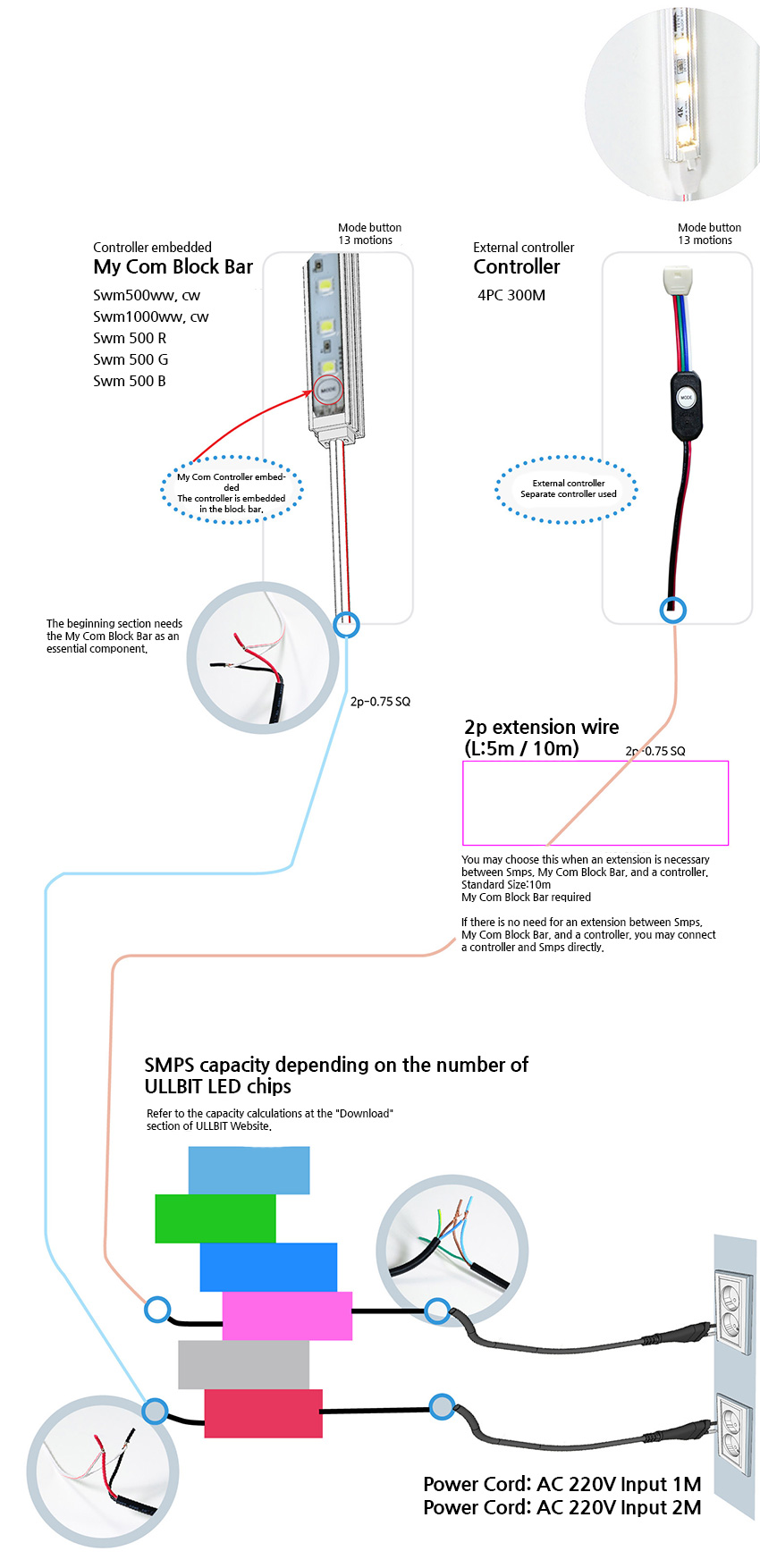

My Com Block Bar, Controller

UULBIT LED SMPS 30W, 60W, 100W, 150W, 200W, 300W

30W Plastic Case
60W Plastic Case
100W Aluminum Case
150W Aluminum Case
200W Aluminum Case
300W Aluminum Case

* The model above is a 12V SMPS.
* For LED block bars, using ULLBIT LED SMPS (converter) is recommended.

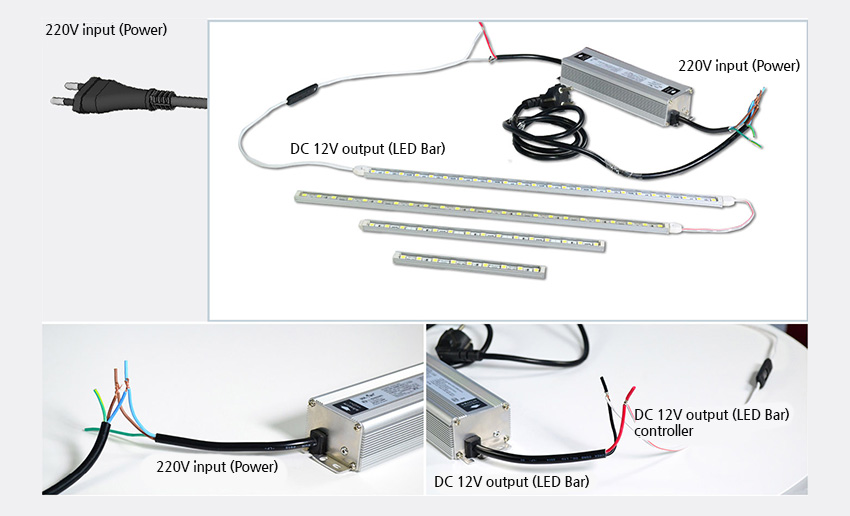

ULLBIT LED SMPS | Wire Connection Diagram (basic)

ULLBIT LED SMPS | Wire Connection Diagram (basic)

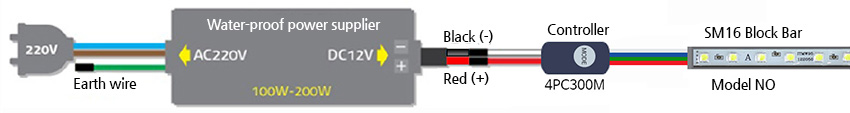

RGB controller wire connection

RGB controller wire connection

Since the 3-ship LED white module has no polarity of +/-, you may connect each wire to the DC 12V section of the power supplier.
Connect each of the 220V power cables to the AC220 section.
(If no separate earth wire is used, you may apply taping for waterproofing.)

This is a power supply to LEDs that are installed for signboards or advertisement units. Since it is manufactured in Korea and has obtained safety certification, its quality and safety are outstanding unlike low-price products made in China. Upon overload, the power is shut off automatically.
